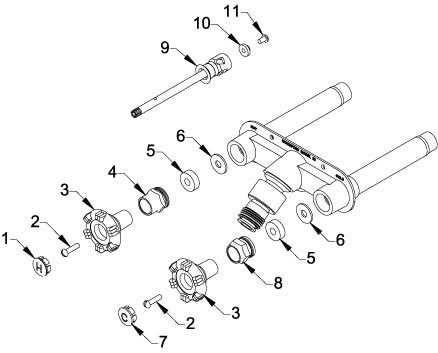

Model 22 Repair Kit Metal Handle
|
|
The Woodford RK-22MH Repair Kit includes all necessary parts to repair both the hot and cold metal handles in Model 22 and Model V22.
1. 30566 - Hot Plug Button
2. 30002 - Handle Screw (2)
3. 30096 - Round, Die Cast Alum. Wheel Handle (2)
4. 30497 - Deep Packing Nut
5. 30560 - EPDM Packing (2)
6. 30006 - Packing Washer (2)
7. 30565 - Cold Plug Button
8. 30059 - Packing Nut
9. 30459 - Check Valve (2)
10. 30008 - Valve Seat Rubber (2)
11. 30009 - Retainer Screw (2)
NOTE: Operating Rod Not Included. |
|
|
|
|
Model RK-22MH
|
| Item shown above may not reflect selected features or inlet. |
|
|
|
